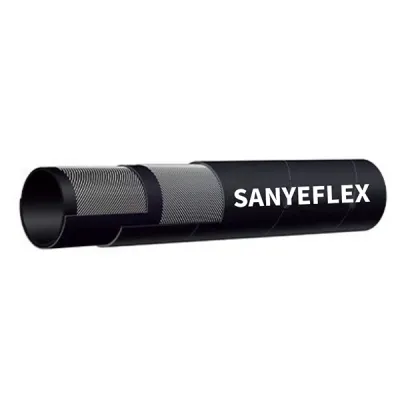

Suction & Discharge Oil Hose

Tube: Black synthetic rubber
Reinforcement: Plies of synthetic cords with helix wire and cross anti-static copper wire
Cover: Black synthetic rubber, wrapped type, abrasion, and weather-resistant
Temperature: -30℃~+80℃
Application: Mandrel built heavy-duty oil suction and discharge hose for handling grades of gasoline or petroleum oils of aromatic content up to 50% from tank truck, in dispensing station etc, during winter/summer seasons and withstands full vacuum.

مطلوب الان المنتج التالي

تخصيص

Hose I.D		Hose O.D	Working Pressure		Burst Pressure		Weight
mm	inch	mm	bar	psi	bar	psi	kg/m
25	1	35	10	150	30	450	0.80
32	1 1/4	42	10	150	30	450	0.95
38	1 1/2	48	10	150	30	450	1.15
51	2	61	10	150	30	450	1.50
64	2 1/2	75	10	150	30	450	1.95
76	3	88	10	150	30	450	2.40
89	3 1/2	102	10	150	30	450	2.90
102	4	114	10	150	30	450	3.30
127	5	141	10	150	30	450	5.20
152	6	166	10	150	30	450	6.70
203	8	221	10	150	30	450	11.20
254	10	272	10	150	30	450	15.80

منتجات ذات صله

Sandblast Hose

Tube: Black conductive NR, abrasion-resistant
Reinforcement: High tensile textile cords
Cover: Black conductive SBR/NR, abrasion and ozone resistant
Temperature: -30°C + 80°C

عرض المزيد

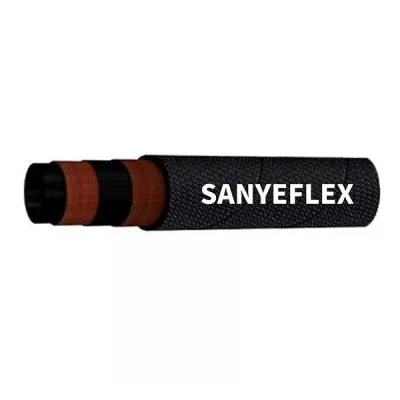

Oil / Fuel Hose (Wrapped cover)

Tube: NBR synthetic rubber, black, smooth
Reinforcement: High tensile textile cords
Cover: black Neoprene rubber, wrapped, oil, ozone, weather, abrasion-resistant
Temperature: -30°C + 80°C

عرض المزيد

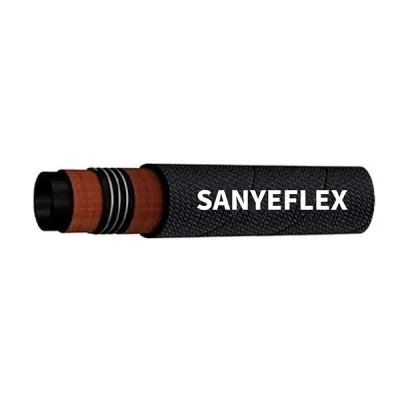

Suction & Discharge Water Hose
