خرطوم هيدروليكي مضفر بالسلك

SAE 100R2/DIN EN853 2SN


SAE 100R2 Hydraulic Hose is made of oil-resistant tubing and is suitable for transporting petroleum-based hydraulic fluids. In addition, it can transport oil without excessive heat and leakage. It is mainly used for some mobile equipment, such as agricultural tractors, dump trucks and in-plant hydraulic equipment.

تخصيص

Specification

HOSE IDWire ODHose ODWorking PressureBurst PressureMinimum Bend RadiusWeight
InchmmmmmmMPaPsiMPaPsimmmm
3/164.811.113.441.4600016523720900.31
1/46.412.715.040.05800160228401000.33
5/167.914.316.636.05250140200001150.39
3/89.516.719.033.14800132188401300.50
1/212.719.822.227.64000110157201800.59
5/815.923.025.425.03630100142802000.71
3/419.027.029.321.5312085122802400.86
125.434.938.016.524006594203001.28
1-1/431.844.548.312.518205071404202.02
1-1/238.150.854.69.013103651405002.23
250.863.567.38.011603245606302.85

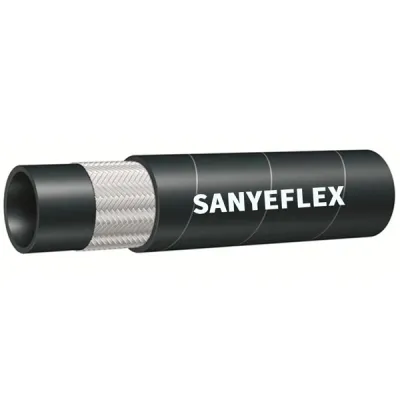

SAE 100R2 Hydraulic Hose

SAE 100R2 Hydraulic Hose is made of oil-resistant tubing and is suitable for transporting petroleum-based hydraulic fluids. In addition, it can transport oil without excessive heat and leakage. It is mainly used for some mobile equipment, such as agricultural tractors, dump trucks and in-plant hydraulic equipment.

It consists of three parts: tube, reinforcement and cover. The tube is made of oil-resistant synthetic rubber, so it is mainly used for transporting oil. The reinforcement is made of two layers of high-strength braided steel wire, which makes the hose structurally strong and resistant to high pressure. Therefore, it has excellent performance under high pressure working environment. The outer cover is made of high-quality synthetic rubber, which is weather-resistant, ozone-resistant, corrosion-resistant, abrasion-resistant, aging-resistant, sun-resistant, and cut-resistant. The hose thus has a longer service life.

Product Description

Wrapped Cover / Smooth Cover

INNER TUBE: oil resistant synthetic rubber

REINFORCEMENT: two high tensile steel wire braids

COVER: abrasion and weather resistant synthetic rubber

TEMPERATURE RANGE: -4℃to +100℃

APPLICATIONS

Hose range suitable to carry hydraulic fluids such as glycol, mineral oils、fuels、lubrication、emulsion、hydrocarbons etc.


منتجات ذات صله

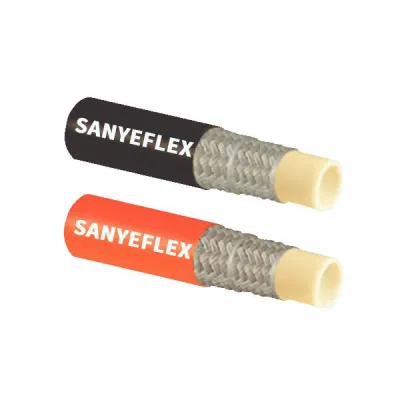

  • SAE 100R8

    SAE 100R8

    STRUCTURE AND CAPABILITY: This kind of hose is made of inner tube (Nylon, reinforcement (High Pressure Synthetic Fiber), and cover (High Flexibility Nylon or Thermoplastic). It is light weight.
  • SAE 100R7

    SAE 100R7

    STRUCTURE AND CAPABILITY: This kind of hose is made of inner tube (Nylon, reinforcement (High Pressure Synthetic Fiber), and cover (High Flexibility Nylon or Thermoplastic). It is light weight.
  • SAE 100R6  (Wrapped Cover / Smooth Cover)

    SAE 100R6 (Wrapped Cover / Smooth Cover)

    INNER TUBE: oil resistant synthetic rubber
    REINFORCEMENT: one high tensile fibre braid
    COVER: abrasion and weather resistant synthetic rubber
    TEMPERATURE RANGE: -4℃ to +100℃
  • SAE 100R3  (Wrapped Cover / Smooth Cover)

    SAE 100R3 (Wrapped Cover / Smooth Cover)

    INNER TUBE: oil resistant synthetic rubber
    REINFORCEMENT: double high tensile fibre braids
    COVER: abrasion and weather resistant synthetic rubber
    TEMPERATURE RANGE: -4℃ to +100℃

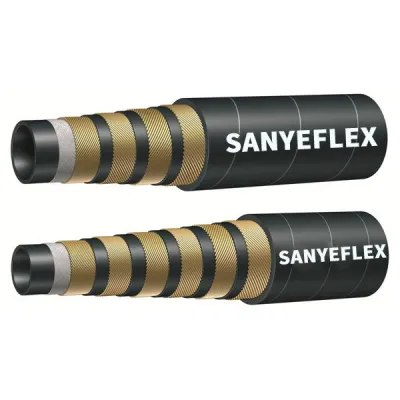

  • SAE 100 R15  (Wrapped Cover / Smooth Cover)

    SAE 100 R15 (Wrapped Cover / Smooth Cover)

    INNER TUBE: oil resistant synthetic rubber
    REINFORCEMENT: four or six spirals of high tensile steel wire
    COVER: abrasion and weather resistant synthetic rubber
    TEMPERATURE RANGE: -4℃ to +125℃
  • SAE 100 R13

    SAE 100 R13

    wire-wound hydraulic hoses can withstand higher working pressures than wire-reinforced hydraulic hoses. Therefore, the hose has outstanding performance in ultra-high pressure environment. The cover is made of high quality black synthetic rubber, which makes the hose resistant to abrasion, corrosion, cutting, weather, ozone, aging and sunlight.
