STRUCTURE AND CAPABILITY: This kind of hose is made of inner tube (Nylon, reinforcement (High Pressure Synthetic Fiber), and cover (High Flexibility Nylon or Thermoplastic). It is light weight. Flexible and the inner tube is very smooth. With few less of pressure, the hose resistance of the medium flowing is small, and it also owns a fine performance of anti-chemical and impulse.
APPLICATION: Automobile, Engineering Machinery, Lathe, Agriculture Machine, Mining, Spurting the Oil Paint, Avigation & Spaceflight, Cooling and other Hydraulic Control System.
تخصيص
HOSE ID | Hose OD | Working Pressure | Burst Pressure | Minimum Bend Radius | Weight | |||
| Inch | mm | mm | MPa | Psi | MPa | Psi | mm | kg/m |
| 1/8 | 3.3 | 8.5 | 17.2 | 2500 | 68.9 | 10000 | 13 | 0.037 |
| 3/16 | 4.8 | 10.8 | 20.7 | 3000 | 82.7 | 12000 | 20 | 0.068 |
| 1/4 | 6.4 | 13.0 | 20.7 | 3000 | 82.7 | 12000 | 33 | 0.085 |
| 5/16 | 7.9 | 15.1 | 17.2 | 2500 | 68.9 | 10000 | 46 | 0.103 |
| 3/8 | 9.5 | 17.0 | 15.5 | 2250 | 62.1 | 9000 | 51 | 0.141 |
| 1/2 | 12.7 | 20.7 | 13.8 | 2000 | 55.2 | 8000 | 76 | 0.210 |
| 3/4 | 19.0 | 27.1 | 86 | 1250 | 34.5 | 5000 | 127 | 0.287 |
| 1 | 25.4 | 34.0 | 6.9 | 1000 | 27.6 | 4000 | 203 | 0.542 |
The SAE 100R7 hydraulic hose is a type of hose commonly used in hydraulic systems. It is designed to withstand high pressure and transmit hydraulic fluid between various components in machinery and equipment. Here are some key features and specifications of the SAE 100R7 hydraulic hose:
Construction: The hose is typically constructed with a thermoplastic inner tube, reinforced with one or multiple layers of synthetic fiber braids, and covered with a thermoplastic outer cover.
Flexibility: The thermoplastic materials used in the construction of the hose provide excellent flexibility, allowing it to bend and route easily, even in tight spaces. This flexibility makes it suitable for a wide range of applications.
High Pressure Rating: The SAE 100R7 hydraulic hose is designed to handle medium to high operating pressures, typically ranging from around 1000 to 3000 psi (pounds per square inch). This makes it suitable for a variety of hydraulic applications where pressure requirements are relatively high.
Compatibility: The hose is compatible with various hydraulic fluids, including petroleum-based oils, synthetic oils, and water-based hydraulic fluids. However, it is important to refer to the manufacturer's specifications and guidelines to ensure proper compatibility with specific fluids and operating conditions.
Temperature Range: The SAE 100R7 hydraulic hose can typically operate within a temperature range of -40°C to +100°C (-40°F to +212°F). Again, it is essential to consult the manufacturer's recommendations for the specific temperature limits of the hose.
Applications: The SAE 100R7 hydraulic hose is commonly used in a variety of hydraulic systems, including mobile equipment, agricultural machinery, material handling equipment, and industrial machinery. It is suitable for applications such as power steering, lubrication lines, hydraulic lifts, and more.
Size Range: The hose is available in various sizes, typically ranging from 1/8 inch to 1 inch in diameter. The size selection depends on the specific hydraulic system requirements and the flow rates involved.
When using the SAE 100R7 hydraulic hose, it is essential to follow the manufacturer's guidelines for installation, maintenance, and safety considerations. Proper assembly, routing, and regular inspection of the hose are crucial to ensure safe and efficient hydraulic system operation.
SAE 100R6 (Wrapped Cover / Smooth Cover)
SAE 100R3 (Wrapped Cover / Smooth Cover)
SAE 100 R15 (Wrapped Cover / Smooth Cover)

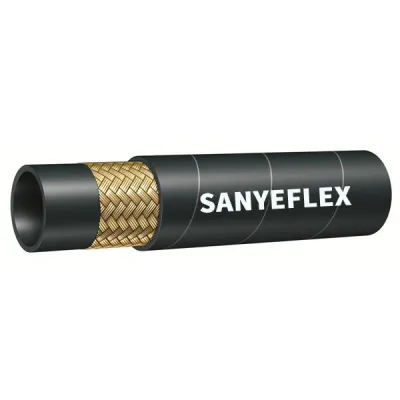

SAE 100R5 (Wrapped Cover / Smooth Cover)

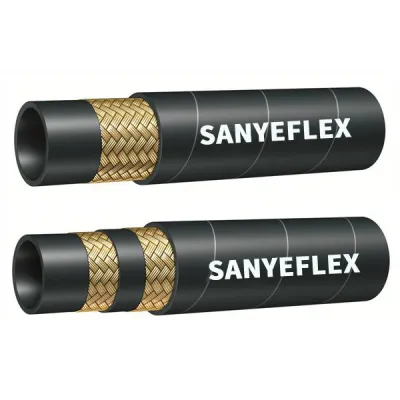

SAE 100 R17 (Wrapped Cover / Smooth Cover)

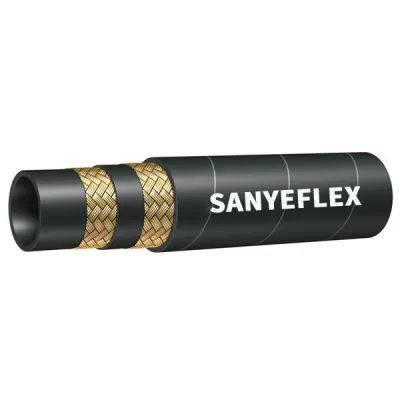

SAE 100 R16 (Wrapped Cover / Smooth Cover)
