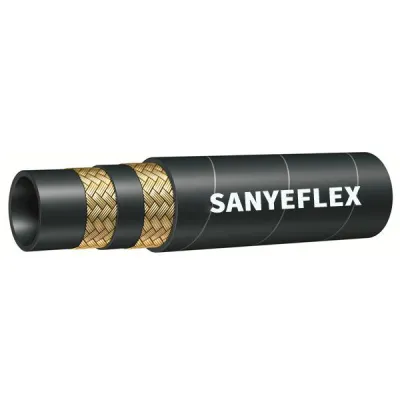

DIN EN 857 2SC (Wrapped Cover / Smooth Cover)

INNER TUBE: oil resistant synthetic rubber

REINFORCEMENT: two high tensile steel wire braids

COVER: abrasion and weather resistant synthetic rubber

TEMPERATURE RANGE: -4℃ to +100℃

APPLICATIONS: Hose range suitable to carry hydraulic fluids such as glycol, mineral oils、fuels、lubrication、emulsion、hydrocarbons etc.

مطلوب الان المنتج التالي

تخصيص

Specification

DN	HOSE ID		Hose OD	Working Pressure		Burst Pressure		Minimum Bend Radius	Weight
DN	Inch	mm	mm	MPa	Psi	MPa	Psi	mm	kg/m
6	1/4	6.4	14.2	45.0	6525	180	26100	75	0.28
8	5/16	7.9	16.0	40.0	5800	160	23200	85	0.36
10	3/8	9.5	18.3	37.5	5438	150	21750	90	0.41
13	1/2	12.7	21.5	31.0	4495	124	17980	130	0.59
16	5/8	15.9	24.7	30.0	4350	120	17400	170	0.63
19	3/4	19.0	28.6	28.7	4162	115	16675	200	0.80
25	1	25.4	36.6	22.5	3263	90	13050	250	1.17

EN 857 Hose

EN 857 2SC steel wire reinforced hydraulic hose is similar to EN 853 2SN steel wire reinforced hydraulic hose in structure. The difference is that it has smaller outside diameter, which is suitable for the equipment piping whose installation space is compact and narrow. It is also composed of three parts: tube, reinforcement and cover. The tube is made from oil, abrasion and corrosion resistant synthetic rubber, making it transport water and petroleum-based hydraulic fluids without any deformation in the working temperature of -40 °C to +100 °C. The reinforcement is made from two layers of high tensile steel wires, making the hose highly resistant to high pressure. Therefore, the hose has excellent performance in the high pressure working conditions. The cover is made from high quality synthetic rubber, making the hose resistant to abrasion, corrosion, chemical fluids, weather, ozone, aging, sunlight and cut.

منتجات ذات صله

DIN EN 857 2SC (Wrapped Cover / Smooth Cover)

EN 857 2SC steel wire reinforced hydraulic hose is similar to EN 853 2SN steel wire reinforced hydraulic hose in structure. The difference is that it has smaller outside diameter, which is suitable for the equipment piping whose installation space is compact and narrow.

عرض المزيد

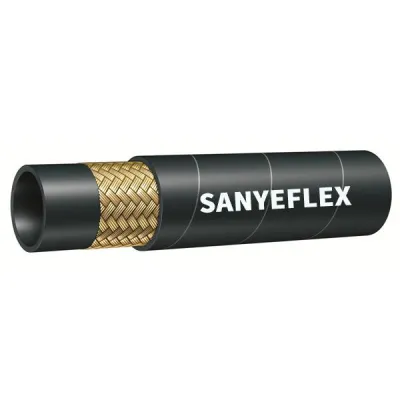

DIN EN 857 1SC (Wrapped Cover / Smooth Cover)
