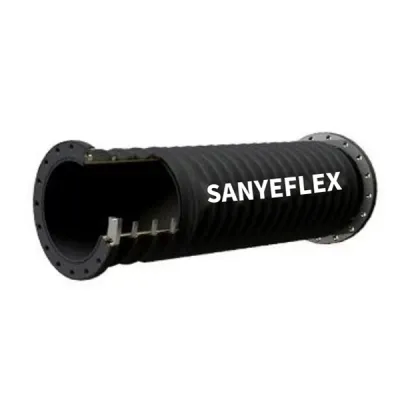

Dredging Hose

Tube: Synthetic abrasive resistant rubber with high strength breaker plies coated with high-grade synthetic rubber to achieve maximum adhesion of the lining to the hose carcass.

Reinforcement: Multiple layers of high tensile reinforcing materials with outstanding resistance to fatigue. Fully embedded steel wire coils are incorporated to achieve kink, crush, and local load resistance.

Cover: Synthetic rubber, resistant to abrasion, weathering, seawater, and oil. The cover, which incorporates reinforcing breaker plies is black with a bright orange spiral stripe or coated in a tough bright orange polyurethane.

Temperature: -25℃ to 80℃


تخصيص

Dredging Hoses

A dredging hose is a specialized type of hose designed for use in dredging operations. Dredging is the process of removing sediment, silt, or other materials from the bottom of bodies of water, such as rivers, lakes, or harbors, to create or maintain navigation channels, deepen waterways, or reclaim land.

Dredging hoses are typically large and durable, capable of withstanding the harsh conditions encountered during dredging activities. They are designed to handle a variety of materials, including mud, sand, rocks, and other debris that may be present in the dredged material. These hoses are flexible to allow for movement and maneuverability of the dredging equipment.

Features:

1. The housing is made of rubber composite material with high weather resistance, UV resistance and ozone resistance.

2. Wear indicator layer can be implemented in dredged hoses carrying abrasive media.

3. A single foam floating layer prevents water absorption. Not less than 20% of the total volume of the hose exposed to the water.

4. Custom flanges are available.

5. Bending angle: 0° to +45° in working condition.

Application

Harbor and Port Maintenance: Dredging hoses are used to remove sediment, silt, and debris from harbors, ports, and shipping channels, ensuring safe navigation for vessels of different sizes.

River and Canal Dredging: Dredging hoses are employed to clear riverbeds and canals, maintaining water depth and improving water flow for irrigation, flood control, or transportation purposes.

Land Reclamation: Dredging hoses play a crucial role in land reclamation projects where sediment is dredged from water bodies and pumped to designated areas to create new land for construction, infrastructure development, or environmental restoration.

Mining and Extraction: Dredging hoses are used in mining operations, particularly in alluvial mining, where sediment and minerals are extracted from riverbeds or underwater deposits. These hoses facilitate the transportation of extracted materials to processing plants.

Environmental Remediation: Dredging hoses are utilized in environmental cleanup efforts, removing contaminated sediment from water bodies affected by pollution or industrial activities. This helps restore water quality and protect aquatic ecosystems.

Beach Nourishment: Dredging hoses are involved in beach nourishment projects, where sand is dredged from offshore locations and pumped onto eroded beaches to restore and replenish them.

Offshore Oil and Gas Industry: Dredging hoses are used in offshore oil and gas operations for the installation and maintenance of pipelines, as well as for the extraction of underwater oil and gas deposits.

Coastal Engineering: Dredging hoses are utilized in coastal engineering projects to control erosion, manage sediment transport, and maintain navigational access to ports and harbors.

Customization of dredged hoses

We welcome distributors and dealers. If you have specific dredging needs, we can also provide customization of dredging hoses! Send us an email to discuss more.

Specification

SizeTube I. D.W.P.Tube Thickness  ≥ mmCover Thickness ≥ mmLength
12inch300mm10bar~35bar1041m~11.8m
16inch400mm10bar~35bar1251m~11.8m
20inch500mm10bar~35bar1251m~11.8m
24inch600mm10bar~35bar2051m~11.8m
26inch650mm10bar~35bar2551m~11.8m
30inch750mm10bar~35bar3061m~11.8m
32inch800mm10bar~35bar3261m~11.8m
34inch850mm10bar~35bar3261m~11.8m



منتجات ذات صله

  • Dredging Hose

    Dredging Hose

    Reinforcement: Multiple layers of high tensile reinforcing materials with outstanding resistance to fatigue. Fully embedded steel wire coils are incorporated to achieve kink, crush, and local load resistance.
  • Sandblast Hose

    Sandblast Hose

    Tube: Black conductive NR, abrasion-resistant
    Reinforcement: High tensile textile cords
    Cover: Black conductive SBR/NR, abrasion and ozone resistant
    Temperature: -30°C + 80°C
  • LPG Hose

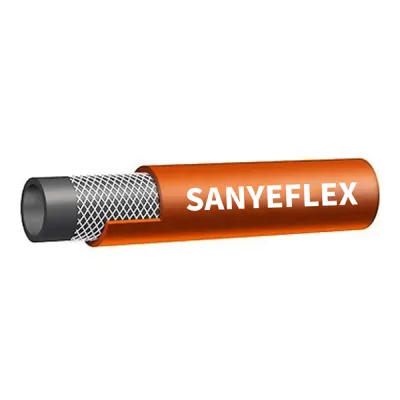

    LPG Hose

    Tube: NBR, black, smooth
    Reinforcement: High tensile textile cords
    Cover: Orange EPDM/SBR blended, weather and ozone resistant
    Temperature: -40℃to~+90℃
  • Oil / Fuel Hose (Surface cover)

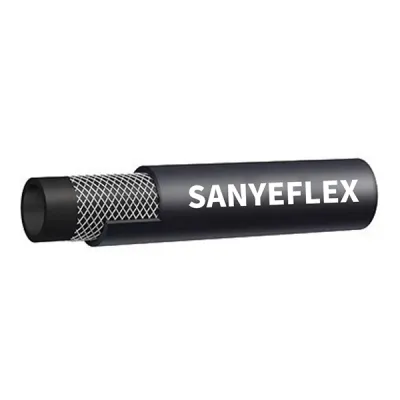

    Oil / Fuel Hose (Surface cover)

    Tube: NBR synthetic rubber, black, smooth
    Reinforcement: high tensile textile cords
    Cover: black Neoprene rubber, smooth, oil, ozone, weather, abrasion resistant
    Temperature: -30°C + 80°C
  • Oil / Fuel Hose (Wrapped cover)

    Oil / Fuel Hose (Wrapped cover)

    Tube: NBR synthetic rubber, black, smooth
    Reinforcement: High tensile textile cords
    Cover: black Neoprene rubber, wrapped, oil, ozone, weather, abrasion-resistant
    Temperature: -30°C + 80°C
  • Suction & Discharge Oil Hose

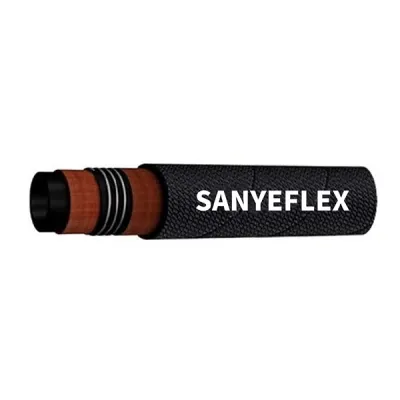

    Suction & Discharge Oil Hose

    Tube: Black synthetic rubber
    Reinforcement: Plies of synthetic cords with helix wire and cross anti-static copper wire
    Cover: Black synthetic rubber, wrapped type, abrasion, and weather-resistant
    Temperature: -30℃~+80℃
  • Suction & Discharge Water Hose

    Suction & Discharge Water Hose

    Tube: Black synthetic rubber
    Reinforcement: Plies of synthetic cords with helix wire
    Cover: Black synthetic rubber, wrapped type, abrasion, and weather-resistant
    Temperature: –30℃~+80℃
  • Hydraulic Fittings & Couplings

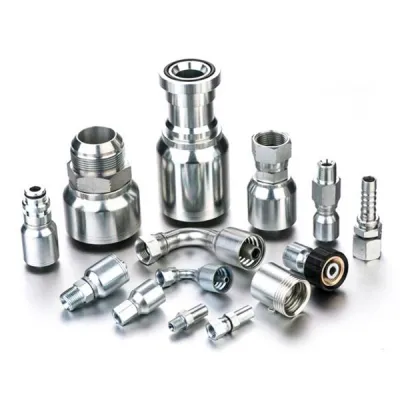

    Hydraulic Fittings & Couplings
